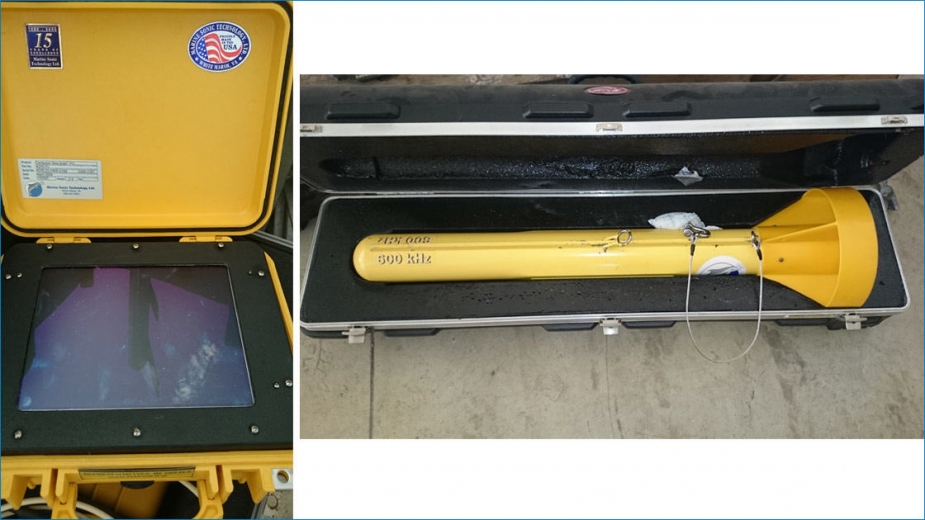

Side Scan Sonar MARINE SONIC SSS

Side Scan Sonar MARINE SONIC SSS
NAME OF EQUIPMENT:
MARINE SONIC SSS
TYPE OF EQUIPMENT:
SIDE SCAN SONAR
PULSE TYPE:
Tone Burst 10us @ 600 kHz
FREQUENCY:
600 kHz
RANGE (MAXIMUM):
75m @ 600 kHz
HORIZONTAL BEAM WIDTH:
0.4_ 300 kHz and above (one-way)
RES. ACROSS TRACK:
1.50 cm @ 600 kHz
RES. ACROSS TRACK (TWO-WAY) @ END OF NEAR FIELD:
15.24 cm @ 600 kHz
SIZE:
Length:106.7 cm Diameter: 10.16 cm
WEIGHT:
20.5 kg
DEPTH RATING:
300m
POWER:
9-24 VDC < 10 watts
TOW CABLE:
Twisted Pair w/ Kevlar Strength Member
CABLE LENGTH:
One 100m and One 30m included with the System, Custom Lengths Available Upon Request
STRENGTH:
750 lb. Safe Working Load
