ROV SAAB SEAEYE

ROV SAAB SEAEYE
NAME OF EQUIPMENT:

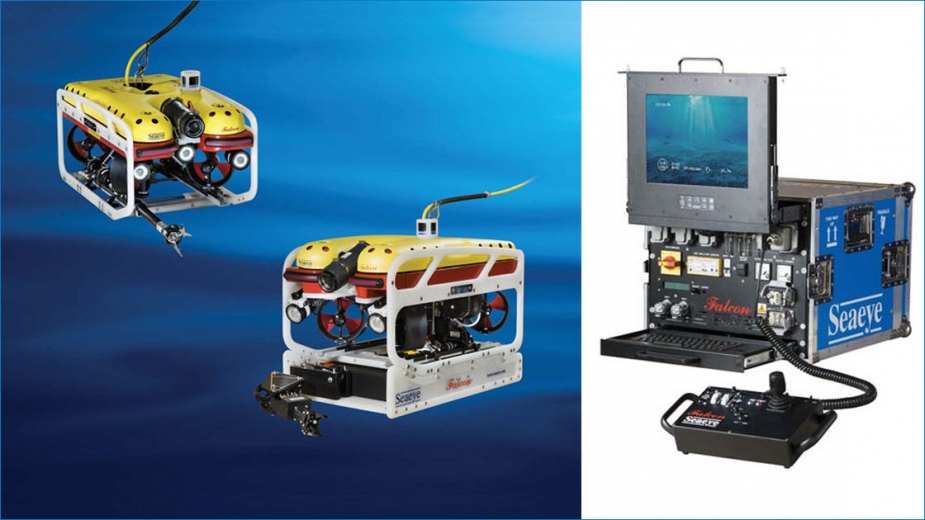

SAAB SEAEYE FALCON
TYPE OF EQUIPMENT:
ROV
MAXIMUM UMBILICAL:
450 m
DEPTH RATING:
300 msw
LENGTH:
1000 mm
HEIGHT:
500 mm
WIDTH:
600 mm
LAUNCH WEIGHT:
60 kg
FORWARD SPEED:
> 3 knots
THRUST FORWARD:
50 kgf
THRUST LATERAL:
28 kgf
THRUST VERTICAL:
13 kgf
PAYLOAD:
14 kg
CAMERA COLOUR:
Camera Resolution 480 TVL
Min. Scene Illumination 0.2 LUX (F1.4)
Pick Up Device 1/2" CCD Image Sensor
Lens 1/2" Aspherical 3.8mm lens, wide angle
fixed focus, Horizontal Field of View 91°
Tilt ±90°
NAV. SPECIFICATIONS:
Compass Accuracy ±1°
Depth Sensor Accuracy ±0.5% of FSD
Gyro 0.1 °/s
Surface Update Rate <100 ms
